CNC Machines
See below for a full list of our current machines and their capacities
XYZ Proturn VL 425
Swing Over Bed 480mm
Swing in Gap 700mm
Gap in front of Faceplate 170mm
Swing over Cross Slide 257mm
Cross Slide Travel 230mm
Distance between Centres 1,250
Maximum Cutting Length 1,080
Spindle Bore 80mm
XYZ Proturn SLX 425
Swing Over Bed 480mm
Swing in Gap 700mm
Gap in front of Faceplate 170mm
Swing over Cross Slide 257mm
Cross Slide Travel 230mm
Distance between Centres 1,250
Maximum Cutting Length 1,080
Spindle Bore 80mm
Colchester Alpha 1500XS
Swing Over Bed 554mm
Swing in Gap 830mm
Gap in front of Faceplate 200mm
Swing over Cross Slide 370mm
Distance between Centres 3000mm
Maximum Cutting Length 2900mm
Spindle Bore 104mm
XYZ RMX 5000 Bed Mill
XYZ SM3500
Spindle Speeds 40 - 5,000 rpm
Table Size 1,930 x 355mm
X Axis Table Travel 1,500mm
Y Axis Table Travel 596mm
Head Vertical Travel 520mm
Quill Travel 140mm
Max Table Load 850kg
Head Tilt Left to Right +45° / -45°
Max Throat Depth 610mm
Spindle Speeds 70 - 3,600 rpm
Table Size 1,473 x 305mm
X Axis Table Travel 1,000mm
Y Axis Table Travel 396mm
Knee Vertical Travel 394mm
Ram Travel 450mm
Quill Travel 127mm
Max Table Load 580kg
Swivel on Turret 360o
Head Tilt Front to Back +45o/ -45o
Head Tilt Left to Right +90° / -90°
Max Throat Depth 700mm
Manual & Boring

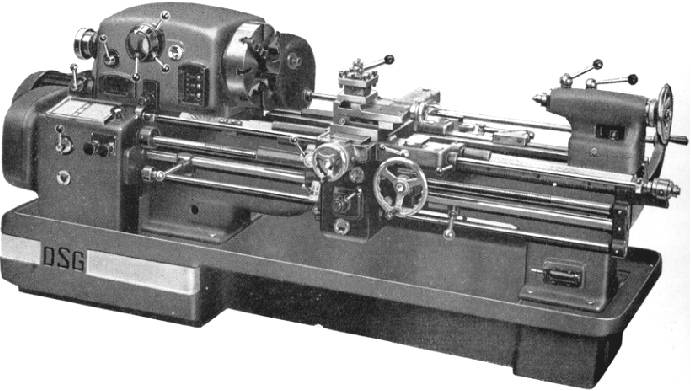

Dean Smith & Grace Matrix
Spindle bore 80mm
Swing over bed 400mm
Swing over cross slide 350mm
Swing in gap 500mm
Bed length 4000mm
Distance between centres 4000mm
Max Length 6m
3T Overhead Crane
Webster Bennett Vertical Borer
Bed plate 900mm
Max throw 1250mm
Head travel 1000mm
3T Overhead Crane
WMW Horizontal Borer
Bed Plate 1250mm x 1250mm
Bed Movement 1000mm all axis
Head Reach 1000mm
Head Vertical Reach 800mm
3T Overhead Crane
XYZ DPM Bed Mill
Spindle Speeds 70 - 3,600 rpm
Table Size 1,473 x 305mm
X Axis Table Travel 1,000mm
Y Axis Table Travel 396mm
Knee Vertical Travel 394mm
Ram Travel 450mm
Quill Travel 127mm
Max Table Load 580kg
Swivel on Turret 360o
Head Tilt Front to Back +45o/ -45o
Head Tilt Left to Right +90° / -90°
Max Throat Depth 700mm
Colchester Mastiff 1400
21" (535mm) x 40" (2000mm) GAP BED CAPACITY
32” (815mm) SWING IN GAP
SPINDLE BORE: 3 1/2" (90mm)
Colchester Mastiff 1800
Swing over bedØ 554mm
Swing in gapØ 830mm
Distance between centres 2000mm
Spindle bore104mm
Swing over cross slide 370mm
Spindle speed 18 - 1800rpm

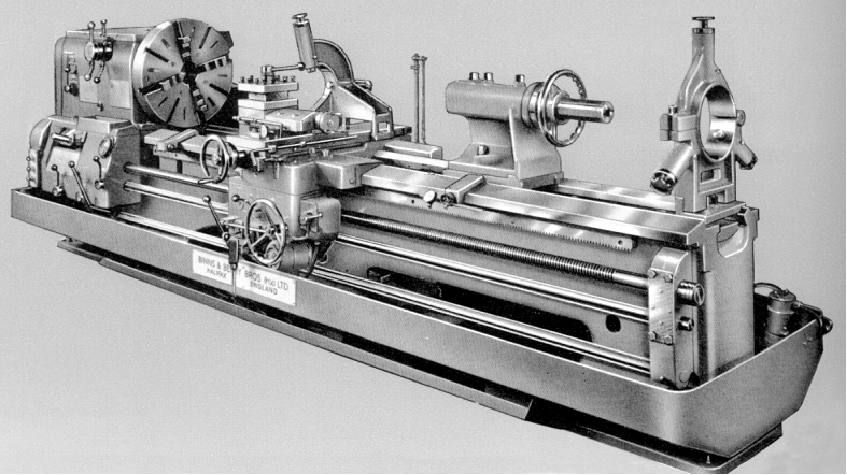

Binns & Berry Trident
Spindle bore 110mm
Swing over bed 750mm
Swing over cross slide 650mm
Swing in gap 1200mm x 400mm
Bed length 5000mm
Distance between centres 5000mm
Max Length 9m
3T Overhead Crane
Cincinatti Horizontal Mill
Table size 104" x 20"
Spindle Speed 14 - 1400 RPM
Cross Travel 18"
Colchester Triumph 2500
Swing over bed 400mm 15.7″
Swing over cross slide 246mm 9.6″
Height of centres 195mm 7.7″
Swing in gap 585mm 23″
Gap width from faceplate165mm 6.5″
Bed length1270mm 50″
Distance between centres1270mm 50″
Other Equipment
Hydraulic 3000psi Test Rig
Surface Grinder
Ormerod Slotter 160 stroke
Ormerod Slotter 200 stroke
Fabrication Bay
Spray Bay
Torque Multiplying Bench
